綺麗な画面でリアルタイムに撮影・タブレット型カメラ

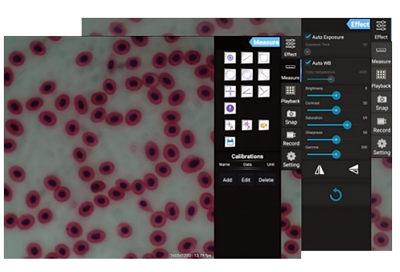

New Scopepad-1000Nは、お手持ちの顕微鏡で目視していた範囲が、9,7インチのアンドロイドパッドでリアルタイムに目視できるマルチメディア顕微鏡です。
| 商品名 | New Scopepad-1000N | ||
|---|---|---|---|
| Hardware | CPU | RK3288 Quad Core 1.8Hz | |
| Display | 9.7inches 2048*1536 Color LCD,5points Capacitance Touch Screen | ||
| Storage | RAM 2GB DDR3 | ROM 8GB | |
| Support External TF Memory Card,Maximum Capacity UP to 32GB | |||
| Camera | Frame Rate: 30pfs(Max) | ||
| Housing | Abs+ Metal Housing, Metal Stand | ||
| l/O | USB/Mini-USB(OTG),Support USB Keyboard and Mouse | ||
| TF Memory Card Slot | Built-in Microphone | ||
| DC12V 2A Power | On/Off Button | ||
| HDMI Output | |||
| Operating System | Android5.1 | ||
| Banding Software | Build-in Microscopy Software | ||
| Optical Format | 1/2.5-inch(4:3) | ||
| Active Image Size | 5.70mm(H)*4.28(V) | 7.13mm(diagonal) | |
| Active Pixels | 2592 * 1944 | ||
| Pixel Size | 2.2um * 2.2um | ||
| Captured Image Resolution | 4032 * 3024(MAX) | ||
| Preview Frame Rate | 1024 * 768 30fps; 2048 * 1536/1600 * 1200 15fps | ||
| Video Resolution | 1024 * 768 | Dynamic Range | 66.5dB |
|---|---|---|---|
| SNR | 40.5dB | A/D Converter | 12-bit,On-chip |
| Sensitivity | 0.53V/lux-sec(550nm) | ||
| Resolution&Frame Frequency | 2048 * 1536/1600 * 1200@15fps, 1024 * 768@30fps | ||
| Shutter | Electronic Rolling Shutter(ERS) | ||
| White Balance | Auto/Manual | Exposure Model | Auto/Manual |
| Parameter Adjustment | Brightness/Contrast/Saturation/Sharpness/Gamma Adjustment | ||
| Flip and Mirror Functions | Rotate the Image Horizontally or Vertically | ||
| 価格 | ¥180,000 | ||
